Malaysia Power Plant Circulating Water Retrofit Project

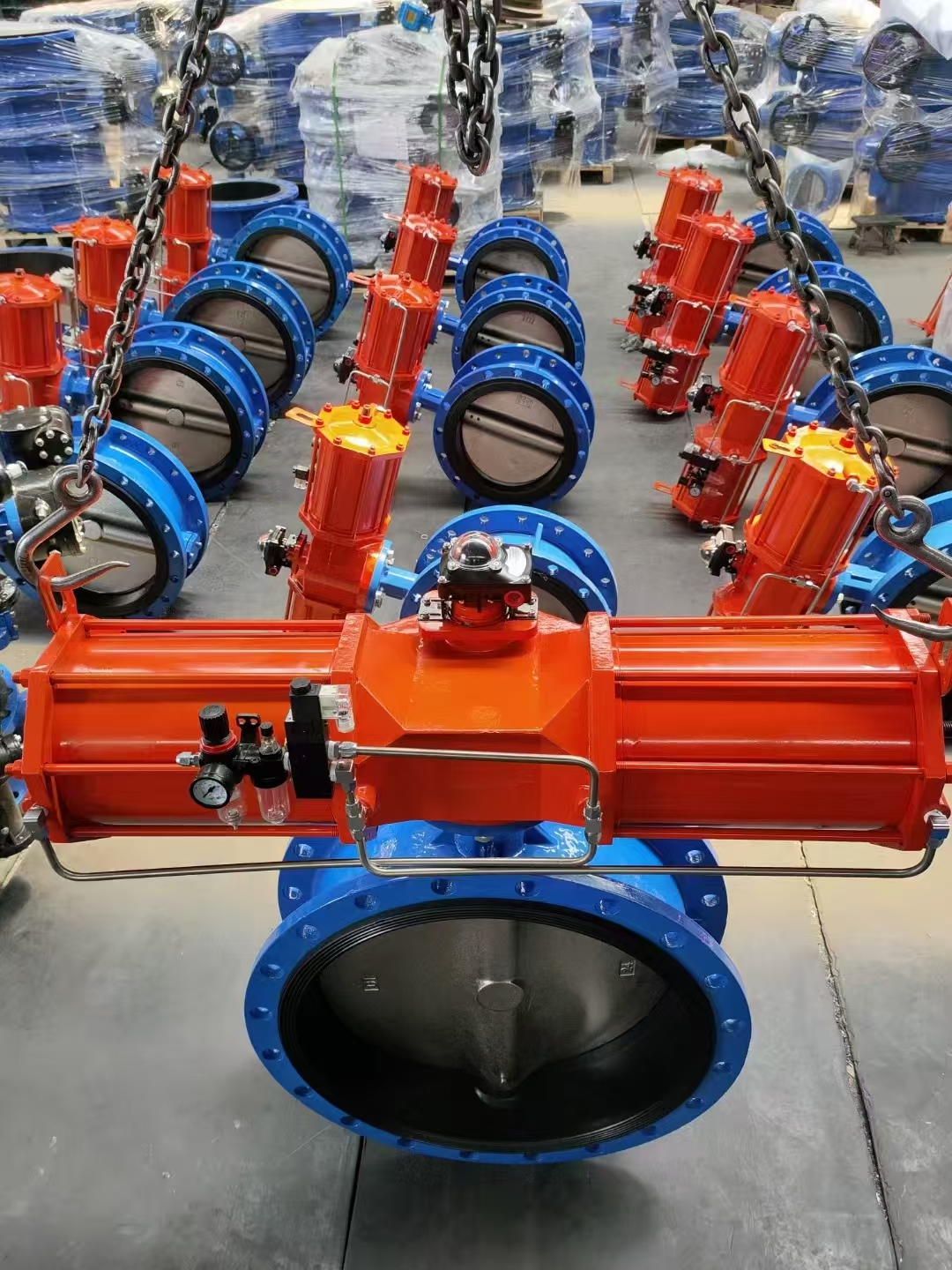

Factory finished inspection of large bore pneumatic butterfly valves before shipment.

Product

D641X Large Diameter Double-Acting Pneumatic Flange Soft-Seat Butterfly Valve, DN800, Ductile Iron Body, SS304 Disc, EPDM Seat, double-acting pneumatic actuator, with position feedback & air filter pressure reducing valve, PN10

Background

A thermal power plant in Malaysia upgraded its circulating cooling water system. The old manual valves had slow operation speed and could not realize automatic remote control, failing to shut off pipeline rapidly in emergency. The end user required large-size valves with fast on-off, remote signal feedback, bubble-tight shutoff, suitable for circulating water, IEC explosion-proof standard and complete pneumatic accessories.

Manufacture & Site Commissioning

Every valve passed hydrostatic and air tightness test before delivery. The photo shows finished valves during factory inspection ready for shipment. After goods arrived at site, we supplied engineering drawings and remote technical support. Local contractors finished pipe connection, air piping layout, actuator and position feedback calibration. During system joint test, valves responded quickly, valve position signal transmitted accurately to central control room, no leakage in pressure test.

Results

✅ Double-acting pneumatic actuator for fast emergency shutoff of large bore pipeline

✅ EPDM soft seat, reliable sealing for circulating water, zero internal leakage

✅ Position feedback module connected to plant DCS system for remote status monitoring ✅ Epoxy coated ductile iron body, resistant to humidity corrosion in tropical plant environment

✅ All valves passed acceptance at one time, stable operation, less manual work and higher automation.

Client Feedback

Robust construction, powerful pneumatic actuator and stable remote control. Complete accessories and clear installation guidance. Better cost performance than European and US brands. We will place new orders for phase 2 project.
